| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Model Number: | TCG2020 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 650000-800000USD |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 90-120 DAYS |
| Supply Ability: | 10 SETS PER MONTH |
| Gas Engine: | MWM Engine | Model: | TCG2020 |
|---|---|---|---|
| Controller: | HSC940 | Warranty: | 12 Months/ 1000 Working Hours |
| Fuel: | NG ( Natural Gas ) | Rated Voltage: | 230/400V |
| Rated Power: | 2000kw | ||
| Highlight: | 2000kw natural gas gensets,2000kw high efficiency gas generator,ng natural gas gensets |
||

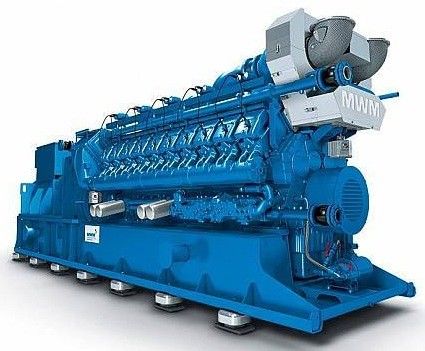

2000kw 42% High Electric Efficiency Gas generator for continuously running use for gas power plant
Natural Gas Generator Feature:
Stable, Efficient, Digital
Advanced components and control systems are used to ensure the product's maximum usage availability. Improved lubricant management systems, optimised cylinders and turbochargers further enhance the product's continuity and reliability.
The most efficient in its class
. Up to 36 % electrical efficiency
. Low operating costs to maximise economic benefits
. Numerical simulation optimised the design of low fluid loss for a higher efficiency
Optimized lubricant management system
. The lowest consumption of lubricating oil in the same grade: <0.3 g/kWh
. Longer intervals for change in oil
. Integrated daily oil tank
Convenient installation of the unit
. Integrated auxiliary oil tank
. Vibration isolation base can reduce installation cost and facilitate stable operation
. Greater lubricant capacity
. Integrated lubricant management system
Higher usage availability and a longer life
. The cylinder with uniform intake air optimises the combustion process
. Optimised combustion process reduces peak pressure
. The unit runs smoothly with a small vibration
Advanced control system
. Simple human-computer interface
. Fully integrated remote access
. Wider range of control, such as: synchronisation, circuit breakers and equipment control
Operational, and economic advantages
The special co-generation unit has a long overhaul period (natural gas overhaul period of 40,000hrs) and high efficiency , which has the highest economic benefit in the same class of products.
Gas Generator Standard Supply Scope:
. Gas Engine with alternator, 400V, 1500rpm, 50Hz
. Ignition System: Ignition controller, Ignition coil, Spark plug, High pressure wires, Sensor
. Air/Gas Mix System: Air/gas mixer, Controller, Pressure sensor, NOx sensor
. Governor System: Governor controller, Throttle, Sensor
. Gas Train:Ball valve, Gas filter, Gas Regulator, Gas Control Valve
. Gas Inlet pressure: 5-20kPa
. Gas Low Heat Value: ≥ 36MJ/Nm3 Natural Gas
