| Place of Origin: | Germany |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Model Number: | TCG2020 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 650000-800000USD |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 90-120 DAYS |
| Supply Ability: | 10 SETS PER MONTH |
| Gas Engine: | MWM Engine | Model: | TCG2020 |
|---|---|---|---|
| Controller: | HSC940 | Warranty: | 12 Months/ 1000 Working Hours |
| Rated Voltage: | 230/400V | Rated Power: | 2000kw |
| Control System: | Automatic | Fuel Type: | Biogas |
| Cooling System: | Water-cooled | Maintenance Interval: | 500 Hours |
| Frequency: | 50Hz | ||
| Highlight: | mwm biogas genset,mwm biogas electricity generator,commercial biogas genset |
||

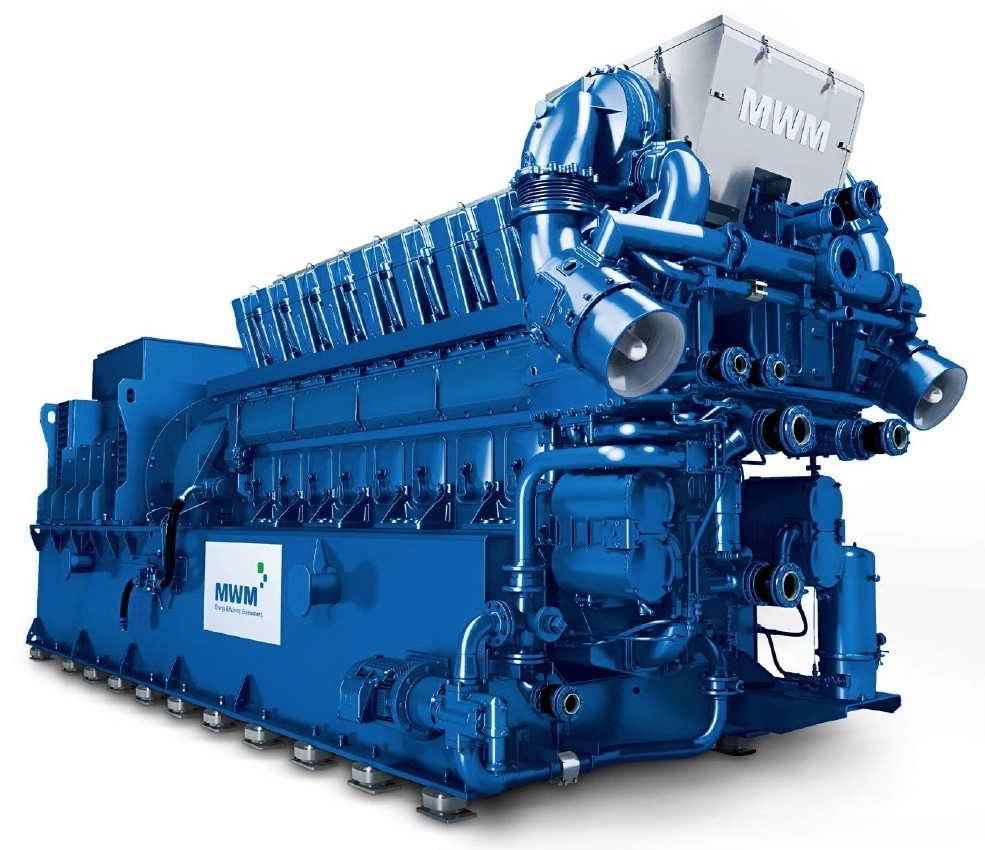

Eco-Friendly MWM Biogas Generator for Commercial and Industrial Settings
Basic Engine
Monobloc grey cast crankcase with inspection ports, standard flywheel housing SAE
Forged crankshaft
Forged connecting rods
Two-valve, individual cylinder heads
Forged aluminum pistons with oil cooling duct, piston cooling
Mixture Formation
Air intake via dry-type engine-mounted air filters
Venturi type air-gas mixer with gas supply via electronically controlled gas metering valve
Turbocharger for gas-air mixture compression
Mixture Intercooling
Throttles between mixture cooler and intake pipe
Exhaust System
Dry-type, insulated exhaust manifolds in the engine
Lube Oil System
Lube oil circulation pump with safety valve for forced-feed lubrication and piston cooling
Engine mounted oil cooler
Lube oil filters with replaceable filter elements
Oil dipstick
Closed crankcase venting system with oil separator for optional
Connections for oil refill and oil draining for optional
Cooling System
High temperature circuit for lube oil cooling, 1st stage of mixture cooling and engine jacket
Connections with counter-flanges for external cooling- or heat recovery system
Integrated cooling preheating unit for optional
Starting System
Electric starter ( 24 VDC battery Starting System)
Ignition System
Microprocessor-controlled high-voltage spark-ignition system with Low Voltage Distribution, no moving parts
Automatic control for ignition energy adjustment
Industrial spark plugs
Variable timing control
Timing sensors at camshaft and crankshaft
One ignition coil per cylinder
Controller of Genset
Integrated controller with LCD display
Operation and visualization
Control of auxiliary drives (cogeneration unit / extern)
Connection / separation of the Generator to/from the grid
Control of generator and grid protection functions, see separate description
Engine start / stop sequence
Emergency stop sequence
Engine monitoring (temperatures, pressures, speed, etc.)
Speed governing
Speed Governor
Throttle Valve
Pickup Sensor
Air / Fuel ratio control via engine characteristic map
Air/Gas Mixer Controller
Air/Gas Mixer
Pressure Sensor
NOx Sensor
Ignition System
Electronic ignition system
Ignition time setting
Speed monitoring
