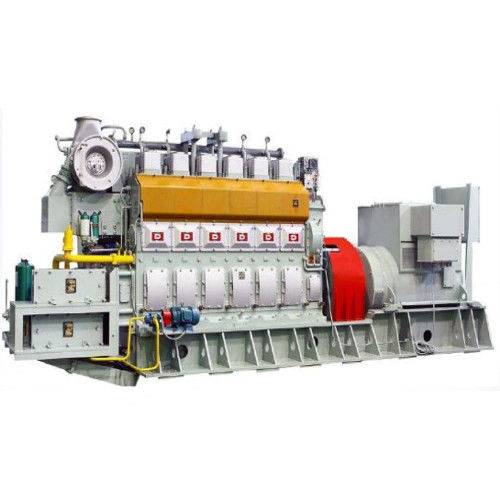

Dual Fuel Generator Sets
Leveraging our extensive production experience in the realm of 1000 to 2000 kW Marine Dual Fuel Generator Sets, Megawatt proudly offers a diverse array of solutions. Our high-quality offerings cater to a multitude of applications, assuring their capability to fulfill various requirements. Should you require assistance, our online customer service stands ready to provide timely support. Beyond the product selection showcased below, we extend the option to tailor and create unique solutions that align precisely with your specific needs.
Standard and Optional Parts
Absorber: standard
Cylinder freshwater heater: standard for self-start engine
Pregreasing pump: standard for self-start engine
Governor: electronic governor (standard)
Silencer: optional
Lifting device: standard
1000 to 2000 kW Marine Dual Fuel Generator Sets Parameters Table
| Item | Unit | Technical Parameters | |
| Engine Type | Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection | ||
| Cylinder Bore × Stroke | mm | 300 × 380 | |
| No. Cylinder | |||
| Revolution | rpm | 500 - 600 | |
| Compression Ratio | |||
| SFOC | g/kW·h | ≤194+3% | |
| SLOC | g/kW·h | ≤0.6 | |
| Cooling System | Closed circulating water cooling | ||
| Alignment Method | Flexible coupling | ||
| Starting Mode | Compressed air motor | ||
| Minimum Height for Lifting Piston | mm | 2600 (above crankshaft centerline) | |
| NOX Emission Standard | IMO Tier II, GB 15097-2016 1st | ||
| Generator Rated Power | kW | 1000 - 2000 | |
| Power Factor | 0.8(lagging) | ||
| Voltage | Steady state voltage regulating rate | % | ＜±2.5 |
| Transient voltage regulating rate | % | -15～＋20 | |
| Stabilization time | s | ＜1.5 | |
| Voltage fluctuation rate | % | ≤±1 | |
| Frequency | Steady state frequency (rev.) regulating rate | % | ＜5(parallel) |
| Transient frequency (rev.) regulating rate | % | ≤±10 | |
| Stabilization time | s | ＜5 | |
| Frequency fluctuation rate | % | ≤±0.5 | |
Notes:
1. “CCFJ***J-W**” means conventional generator set, and “CCFJ***Z-W” means self-starting type generator set.
2. This model portfolio is mainly about 50Hz, 400V, and 60Hz products with corresponding powers that can be also produced according to customer requirements, please contact relevant personnel for specific specifications and technical parameters.
3. For generator set model selection, please make communicate with relevant personnel.
4. The delivery scope for each model engine shall be performed as per the corresponding technical files.
5. Dimensions and weight are for reference only.
