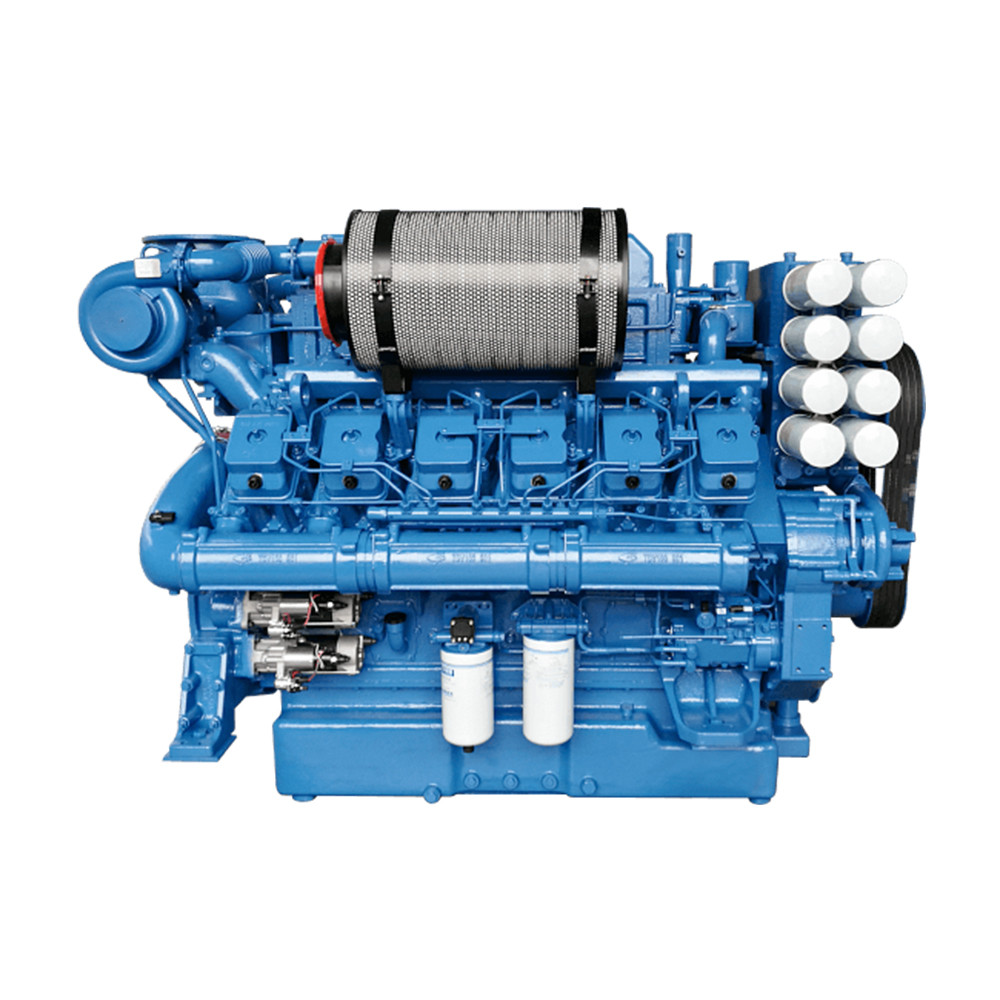

900-1520kW Diesel Engine Industrial Yuchai YC12VTD Generators
Brief introduction of Yuchai YC12VTD
The YC12VTD series engine is a high-power V-type product known for its compact structure, outstanding performance, energy efficiency, environmental friendliness, reliability, and durability. Its key indicators, including pollutant emissions, dynamic performance, economy, and reliability, meet international advanced standards.
Yuchai YC12VTD Technical parameters
| Model | YC12VTD1350-D30 | YC12VTD1500-D30 | YC12VTD1680-D30 | YC12VTD1830-D30 | YC12VTD2000-D30 | |
| Type | Vertical,V-type,water-cooling,four-stroke | |||||
| Air Intake Mode | Turbocharged & intercooled | |||||
| Cylinder quantity - bore×stroke (mm) | 12-152×180 | |||||
| Displacement (L) | 39.2 | |||||
| Compression ratio | 14:1 | |||||
| Prime power/speed (kW/r/min) | 900/1500 | 1000/1500 | 1120/1500 | 1220/1500 | 1345/1500 | |
| Standby power/speed (kW/r/min) | 990/1500 | 1100/1500 | 1230/1500 | 1342/1500 | 1480/1500 | |
| Min. fuel consumption rate g/(kW.h) | ≤203 | |||||
| Oil capacity (dry engine )(L) | 215 | |||||
| Oil fuel ratio (%) | ≤0.3 | |||||
| Start mode | Electric start | |||||
| Fuel system | HPCR | |||||
| Noise Lp dB(A) | ≤103 | |||||
| Emission | Non-road T3 | |||||
| Dimension(L×W×H) (mm) | 2240×1700×1950(without radiator) | |||||
| Dry weight (kg) | Engine:4570(with intercooler) | |||||
| Model | YC12VTD1350-D32 | YC12VTD1500-D32 | YC12VTD1680-D32 | YC12VTD1860-D32 | YC12VTD2070-D32 |
| Type | Vertical,V-type,water-cooling,four-stroke | ||||
| Air Intake Mode | Turbocharged & intercooled | ||||
| Cylinder quantity - bore×stroke (mm) | 12-152×180 | ||||
| Displacement (L) | 39.2 | ||||
| Compression ratio | 14:1 | ||||
| Prime power/speed (kW/r/min) | 900/1800 | 1000/1800 | 1120/1800 | 1240/1800 | 1380/1800 |
| Standby power/speed (kW/r/min) | 990/1800 | 1100/1800 | 1232/1800 | 1364/1800 | 1520/1800 |
| Min. fuel consumption rate g/(kW.h) | ≤203 | ||||
| Oil capacity (dry engine )(L) | 215 | ||||
| Oil fuel ratio (%) | ≤0.3 | ||||
| Start mode | Electric start | ||||
| Fuel system | HPCR | ||||
| Noise Lp dB(A) | ≤103 | ||||
| Emission | Non-road T3 | ||||
| Dimension(L×W×H) (mm) | 2240×1700×1950(without radiator) | ||||
| Dry weight (kg) | Engine:4570(with intercooler) | ||||
