| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 650000-800000USD |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 90-120 DAYS |
| Supply Ability: | 10 SETS PER MONTH |
| Warranty: | 12 Months/ 1000 Working Hours | Speed: | 1500 Rpm |
|---|---|---|---|
| Frequency: | 50/60HZ | Rated Power: | 850kw-1650kw |
| Alternator: | Stamford, Marathon, Leroy Somer, Mecc Alte | Fuel: | Industrial Exhaust Gas |
| Color: | Customized | Control Panel: | Smartgen, Deepsea, ComAp |
| Engine Type: | Cummins/Yuchai/Perkins/etc | ||
| Highlight: | YC16VC Exhaust Gas Generator Set,YC16VC Yuchai Genset,Exhaust Gas Yuchai Genset |
||

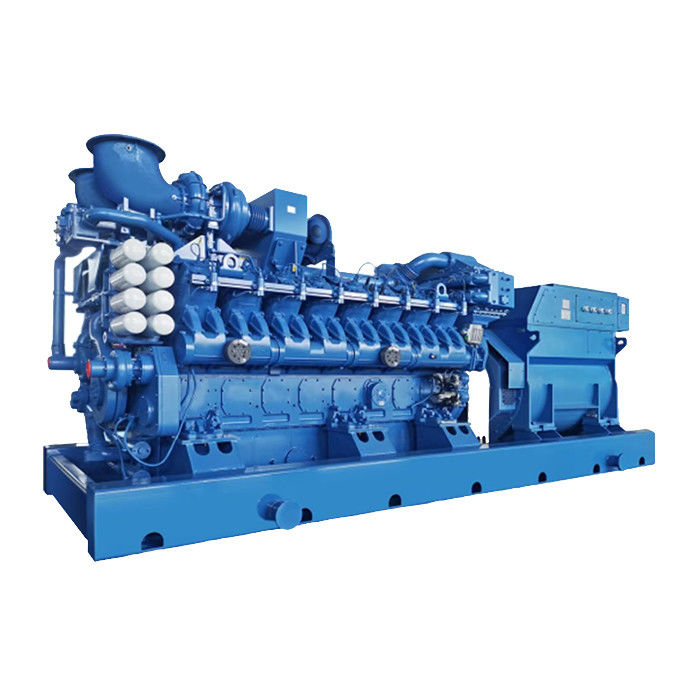

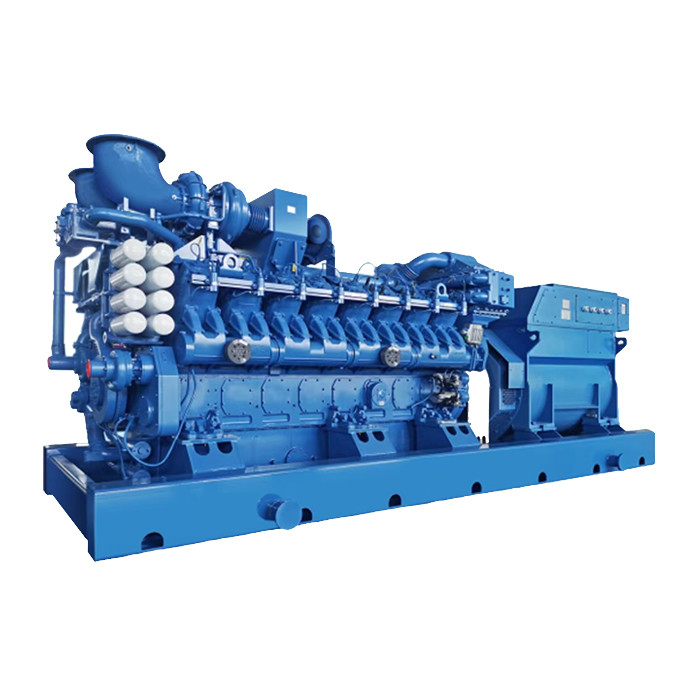

Yuchai YC16VC Industrial Tail Gas Generator Sets Specifications:
Energy Saving Environmentally Friendly Oil Refinery Manufacturing Plant Industrial Tail Gas Generator
| Model | YC16VC3300-D30 | YC16VC3600-D30 | YC16VC4000-D30 |
| Prime power(KW) | 2205 | 2405 | 2673 |
| Standby power(KW) | 2405 | 2646 | 2940 |
| Brand/manufacture | YUCHAI | ||
| Speed(r/min) | 1500 | ||
| No. of Cylinder | 16 | ||
| Cylinder arrangement | V | ||
| Stroke | Four stroke | ||
| Air intake mode | Turbocharged & Intercooled | ||
| Fuel supply | Electronically controlled unit pump | ||
| Bore x stroke | 200×210mm | ||
| Displacement | 105.56L | ||
| Emission | T3 No-road T3 | ||
Industrial exhaust gas generator sets utilize combustible exhaust gas from various industries as fuel to power internal combustion engines that drive alternators, converting mechanical energy into electrical and thermal energy. These sets typically consist of a gas engine, a synchronous alternator, and a control system, offering efficiency, economy, cleanliness, and environmental friendliness.
In refining and chemical production, industries such as coke, blue carbon, shale oil, calcium carbide, and ferroalloy generate significant amounts of low-calorific-value industrial exhaust gas, primarily composed of H2, CO, and methane. Despite their complexity, instability, impurities, toxicity, and flammability, most of these gases are wasted rather than utilized.
Our generator sets are adaptable to various fuel types across high, medium, and low calorific value ranges. Industrial tail gas fuels suitable for power generation include coke oven gas, blue carbon gas, converter gas, blast furnace gas, oil shale tail gas, calcium carbide tail gas, and ferroalloy tail gas.
Classification of industrial exhaust gas generator sets includes categorization based on fuel type, such as coke oven gas generator sets, blue carbon gas generator sets, etc. Additionally, sets can be classified by engine speed, with high-speed generator sets (speed > 1000 r/min) and medium-speed generator sets (speed 500-1000 r/min).
Our company offers industrial exhaust gas generator sets with power ranging from 300 kW to 1,650 kW. Recognizing the economic, energy utilization, and environmental benefits, industrial tail gas power generation is increasingly valued as an environmentally friendly and sustainable energy source, effectively turning waste into a valuable resource.
