| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 9-12 Months |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 SETS PER MONTH |
| Engine Brand: | MAN | Output Rating: | 0.42 MW - 21 MW |
|---|---|---|---|
| Fuel Type: | Heavy Fuel Oil | Emissions: | Compliant With Local Regulations |
| Cooling Method: | Water Cooled | Model: | HFO Power Plant |
| Frequency: | 50Hz-60Hz | Warranty: | 12 Months/ 1000 Working Hours |
| Alternator: | Stamford, Marathon, Leroy Somer, Mecc Alte | Control Panel: | Smartgen, Deepsea, ComAp |
| Color: | Customized | ||
| Highlight: | 900kw high efficiency generator,900kw high efficiency diesel generator,1980kw high efficiency generator |
||

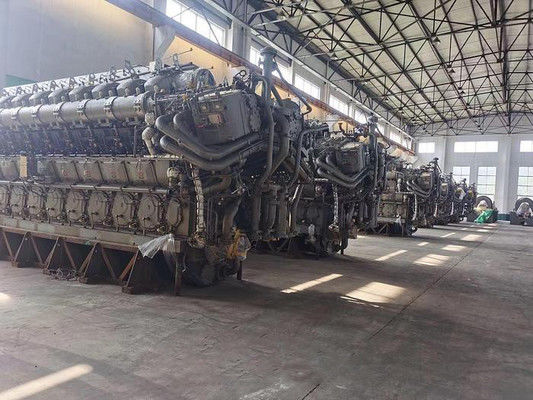

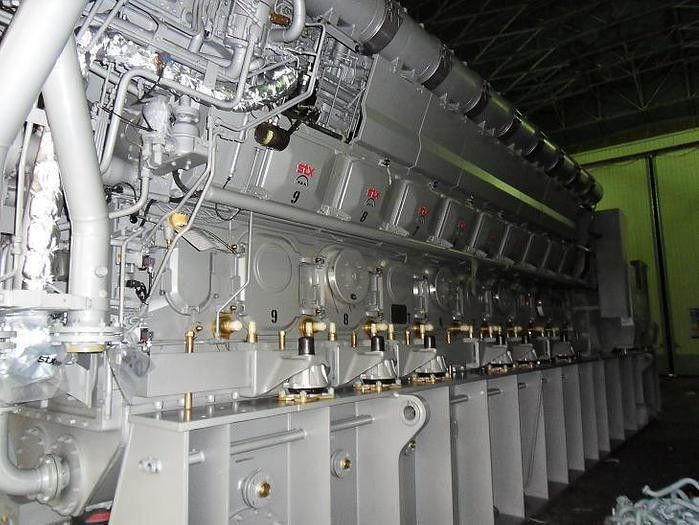

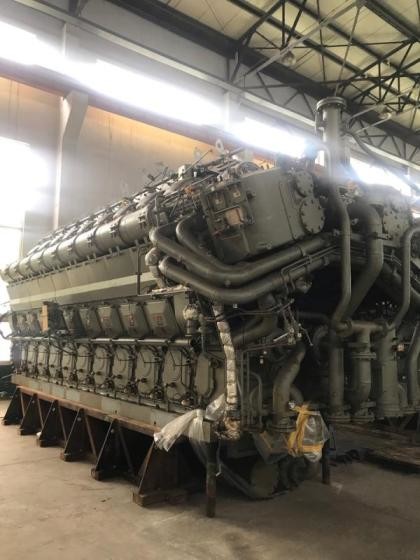

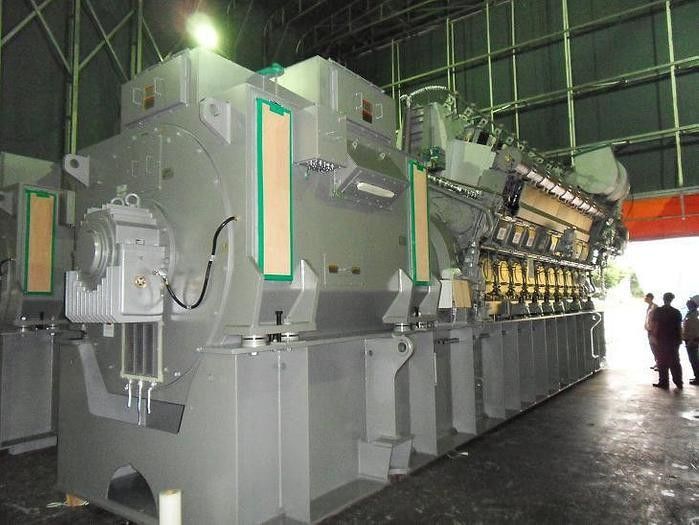

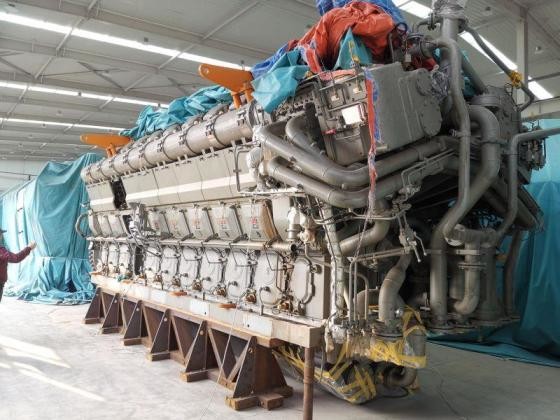

900kW 1980kW High Power Output High Efficiency MAN L21/31 Series HFO Engine Generating Set
Man HFO Generator Sets Specifications:
| Engine-Genset Output (kW) | Data of Engine | Overall size (mm) | Dry Mass (kg) | |||||
| 900r/min/60Hz | 1000r/min/50Hz | Type | Bore/Stroke (mm) |
Structure | Length | Width | Height | |
| 1000-950 | 5L21/31 | 210/310 | In Line | 5829 | 1400 | 3183 | 21500 | |
| 1320-1254 | 6L21/31 | 6314 | 3183 | 23700 | ||||
| 1540-1463 | 7L21/31 | 6639 | 3183 | 25900 | ||||
| 1760-1672 | 8L21/31 | 7274 | 3289 | 28500 | ||||
| 1980-1881 | 9L21/31 | 7779 | 3289 | 30900 | ||||
● The MAN L21/31 boasts a compact design and lightweight construction, offering a power range of 1000-1980KW.
● Utilizing HFO/Crude Oil throughout its operating range, the MAN L21/31 delivers high performance, minimal lube oil, and fuel consumption.
● Engine cylinder maintenance intervals stand at 20000-25000h, with components easily removable as a single unit, requiring minimal space.
● Meeting future IMO NOx emission standards, the MAN L21/31 contributes to environmental preservation.
● Employing an integrated cooling water system, the MAN L21/31 ensures precise temperature control from idle to maximum load. Furthermore, its air cooler features a water fog trap to reduce condensed water accumulation.
