| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 9-12 Months |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 SETS PER MONTH |
| Engine Brand: | MAN | Output Rating: | 450-990kW |
|---|---|---|---|
| Fuel Type: | Heavy Fuel Oil | Emissions: | Compliant With Local Regulations |
| Cooling Method: | Water Cooled | Model: | HFO Power Plant |
| Frequency: | 50Hz-60Hz | Warranty: | 12 Months/ 1000 Working Hours |
| Alternator: | Stamford, Marathon, Leroy Somer, Mecc Alte | Control Panel: | Smartgen, Deepsea, ComAp |
| Color: | Customized | ||
| Highlight: | 1000rpm hfo power plant,1000rpm hfo power generator,1200rpm hfo power plant |
||
Quick Installation 1000rpm 1200rpm MAN L16/24 Series Fuel Economy HFO Generator Set
Man HFO Generator Sets Specifications:
| Engine-Genset Output (kW) | Data of Engine | Overall size (mm) | Dry Mass (kg) | |||||
| 1000r/min/50Hz | 1200r/min/60Hz | Type | Bore/Stroke (mm) |
Structure | Length | Width | Height | |
| 450-430 | 500-475 | 5L16/24 | 160/240 | In Line | 4151 | 1000 | 2226 | 9500 |
| 540-515 | 660-625 | 6L16/24 | 4516 | 10500 | ||||
| 630-600 | 770-730 | 7L16/24 | 4886 | 11400 | ||||
| 720-685 | 880-835 | 8L16/24 | 5256 | 12400 | ||||
| 810-770 | 990-940 | 9L16/24 | 5531 | 13100 | ||||

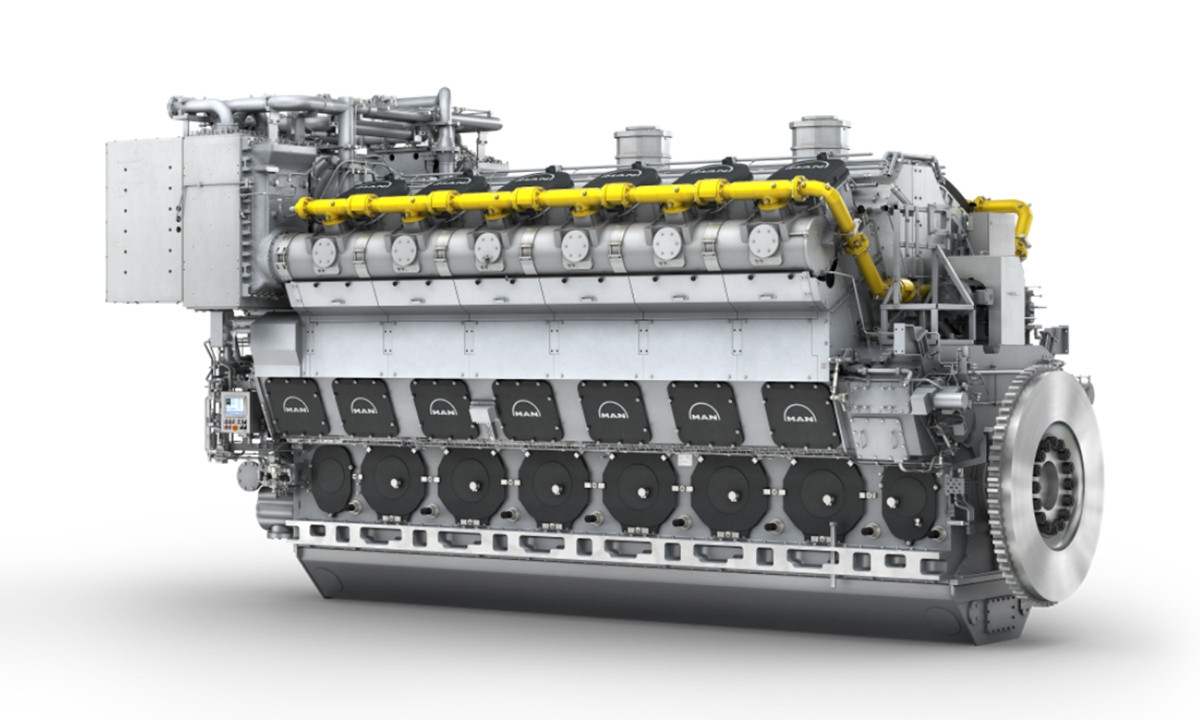

● The MAN L16/24 diesel engine represents a pinnacle of design in diesel generator sets, offering a power range of 450-990KW and standing as one of the world's premier options. It is fully compliant with future IMO NOx emission standards, promoting environmental conservation.
● Capable of running on HFO/Crude Oil, the MAN L16/24 significantly lowers operating costs across its entire load range.
● The layout of the L16/24 generator set is straightforward and harmonizes seamlessly with MAN B&W propulsion engines, enhancing ease of operation and maintenance. Its pipeless design streamlines components, enhancing reliability.
● Integration of a Lambda controller in the L16/24 diesel engine ensures thorough fuel combustion in cylinders, minimizing engine contamination and wear during load increases.
● With minimal vibration, the MAN L16/24 generator set incorporates effective noise isolation measures for a quieter operation.
