| Place of Origin: | China |
|---|---|
| Brand Name: | Taikan |
| Certification: | ISO 9001 |

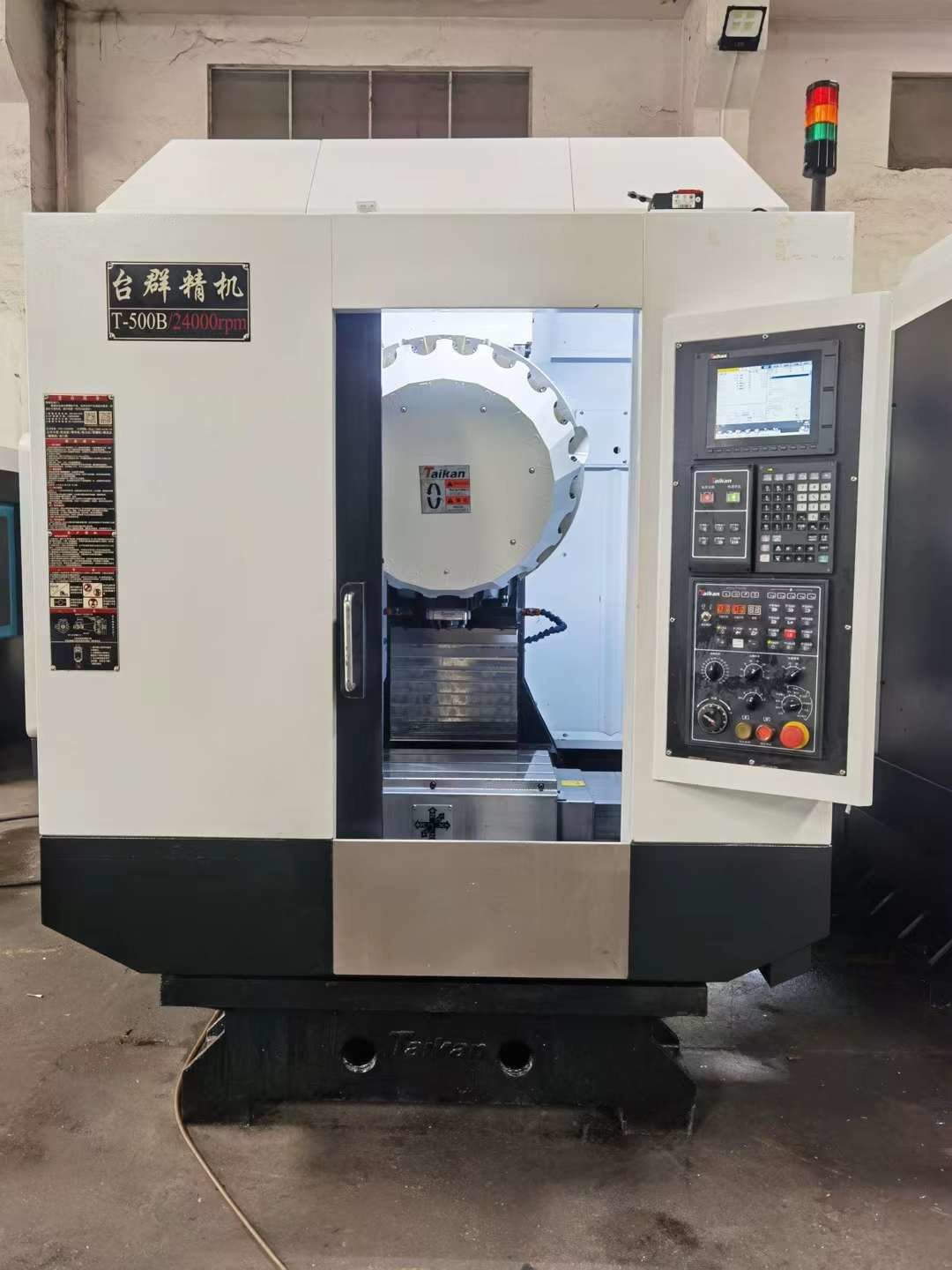

| Model Number: | T-500B |
| Minimum Order Quantity: | 1 SET |
| Price: | 18999-19999 USD |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Supply Ability: | 300 SETS PER MONTH |
| Travel Size(X Axis): | 500mm | Travel Size(Y Axis): | 400mm |
|---|---|---|---|
| Travel Size(Z Axis): | 460mm | Spindle Nose To Table Distance: | 180-640mm |
| Spindle Center: | 445mm | Table Size: | 620*400mm |
| Max. Weight（evenly Distributed: | 250kg | T Slot(number-width*spacing): | 3-14*120 |
| Motor Power（rated/short-time）: | 3.7/5.5 | Motor Torque（rated/short-time）: | 14.1/21N.m |
| Speed: | 20-20000(24000)rpm | Diameter: | 100mm |
| Taper: | BT30 | ||
| Highlight: | Mitsubishi M80 CNC Machine,21-Tool CNC Machine,Used CNC Machine |
||
| Items | Unit | T-500B | ||
| Processing | Travel size(X axis) | mm | 500 | |
| Travel size(Y axis) | mm | 400 | ||
| Travel size(Z axis) | mm | 460 | ||
| Spindle nose to table distance | mm | 180-640 | ||
| Spindle center | mm | 445 | ||
| Work table | Table size | mm | 620*400 | |
| Max. weight(evenly distributed) | Kg | 250 | ||
| T slot(number-width*spacing) | mm | 3-14*120 | ||
| Spindle | Motor power(rated/short-time) | kW | 3.7/5.5 | |
| Motor torque(rated/short-time) | N.m | 14.1/21 | ||
| Speed | rpm | 20-20000(24000) | ||
| Diameter | mm | Ф100 | ||
| Taper | / | BT30 | ||
| Guide rail | X-axis specification | / | 25 | |
| Y-axis specification | / | 30 | ||
| Z-axis specification | / | 35 | ||
| Drive | X,Y,Z screw specification | mm | X:28/12 | |
| Y:28/12 | ||||
| Z:32/12 | ||||
| X/Y/Z motor power | kw | 1.5/1.5/2.2 | ||
| Speed | Cutting and feed speed range | mm/min | 1-30000 | |
| X/Y/Z axis rapid traverse | m/min | 48/48/48 | ||
| Accuracy | Positioning accuracy(X/Y/Z) | mm | 0.006 | |
| Repeat positioning accuracy(X/Y/Z) | mm | 0.004 | ||
| Tool storage | Capacity | PCS | 21 | |
| Max. tool weight | kg | 3 | ||
| Max. tool length | mm | 200 | ||
| Max. diameter(full/adjacent empty) | mm | Ф60/Ф80 | ||

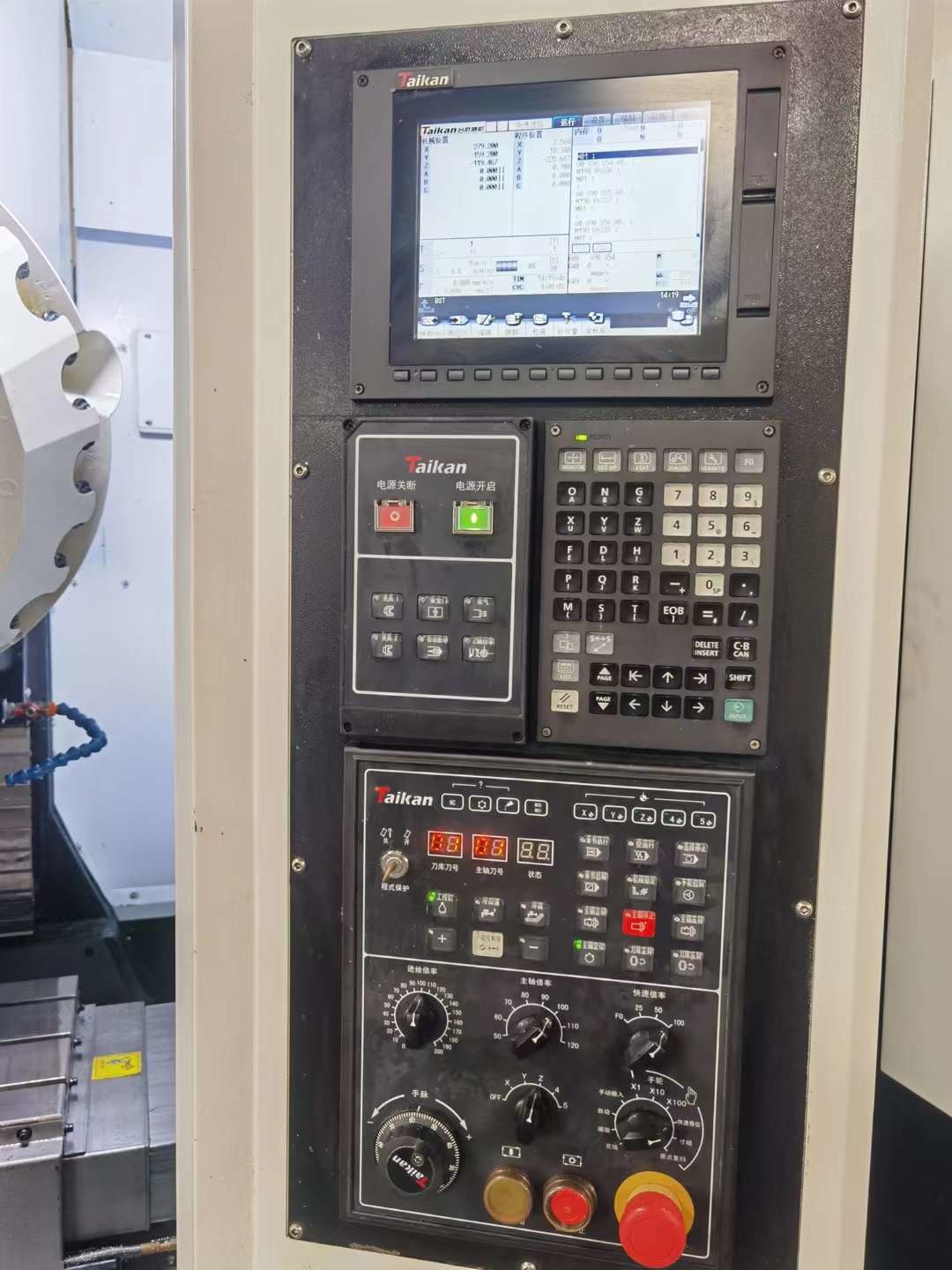

| Others | CNC system | Mitsubishi M80A | ||
| Air source | Flow | L/min | ≥200(ANR) | |
| Pressure | MPa | 0.6-0.8 | ||
| Equipment capacity | kVA | 12 | ||
| Maximum capacity of water tank | L | 110 | ||
| Appearance dimension of machine(length*width*height) | mm | 1650*2400*2500 | ||
| Machine weight(approximate) | Kg | 3100 | ||
Mainly used for 3 C of consumer electronics shell, stainless steel equipment, aerospace, automotive parts and equipment in the industry of small plate parts processing.
The X, Y, and Z axes are equipped with precision ball screws, and the three-axis guide rails feature precision linear guide rails. All three axes utilize absolute value servo motors, and the system employs an imported high-performance CNC system to analyze and compensate for coordinate positioning, ensuring the machine's high precision. The spindle is a high-precision inline model with a direct-drive structure, achieving a maximum speed of 24,000 rpm as standard. The castings are produced using the Meehanite process, including thorough heat treatment to eliminate internal stress. This machine boasts high precision, high speed, and high rigidity, integrating drilling, tapping, and milling functions. It's widely used for processing small plate parts, disc parts, and shells in the 3C industry, automotive parts industry, small mold processing industry, medical equipment industry, and more.
