| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 45-60 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 SETS PER MONTH |
| Working Pressure: | 17-450 Bar / 246-6525 PSI | FAD (Free Air Delivery): | 28.25-105.93cfm; 0.8-3.0m³/min |
|---|---|---|---|
| Working Power: | 9-55 KW / 12.07-73.76 Hp | Certificate: | CE, ISO9001 |
| Highlight: | 55 kw oil free air compressor,oil free air compressor screw type,air compressor screw type high pressure |
||

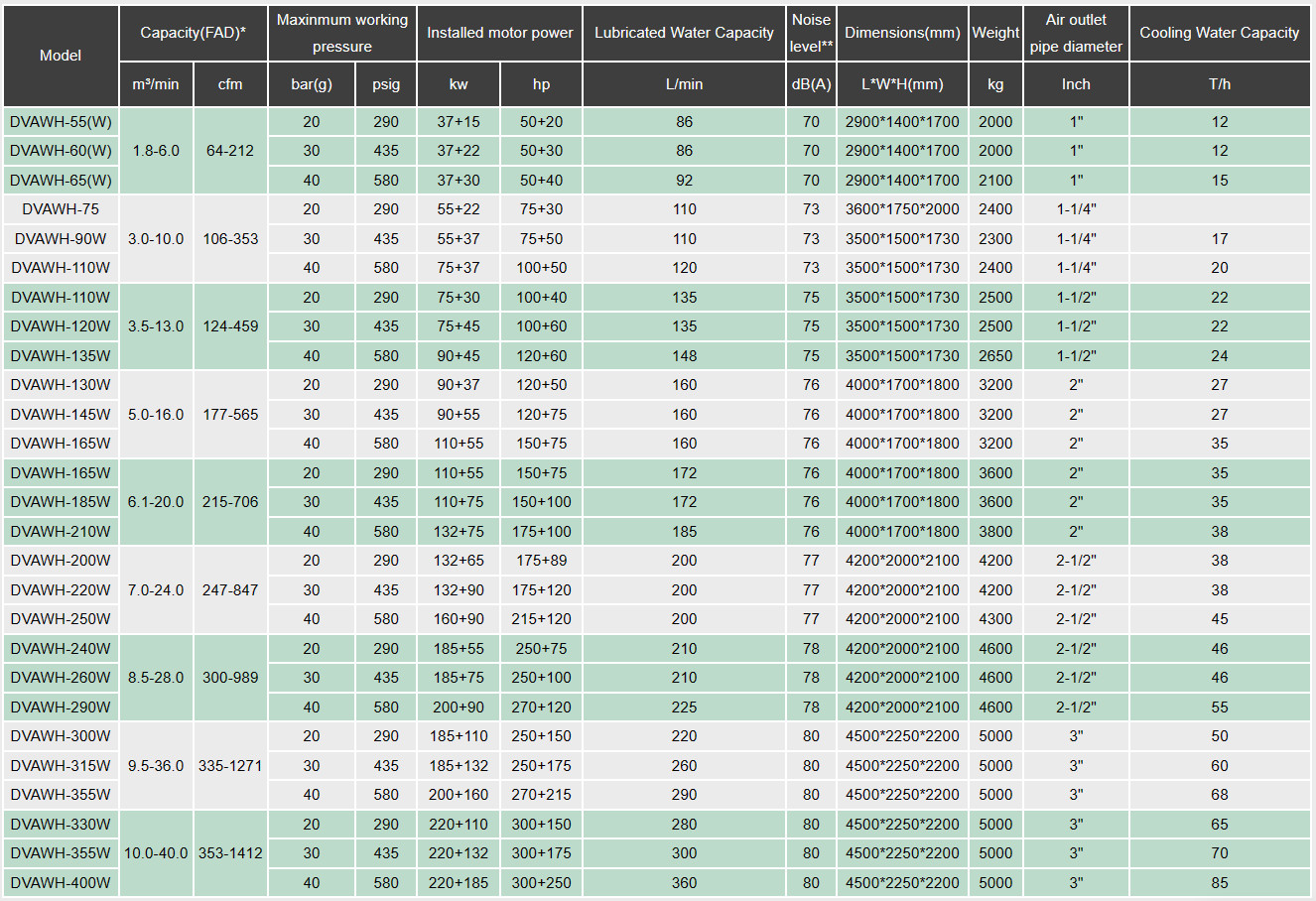

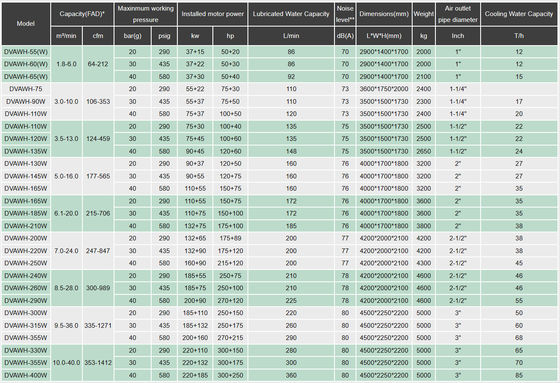

| Model | Capacity(FAD)* | Maximum working pressure | Installed motor power | Lubricated Water Capacity | Noise level | Dimensions(mm) | Weight | Air outlet pipe diameter | Cooling Water Capacity | |||
| m³/min | cfm | bar(g) | psi | kw | hp | L/min | dB(A) | L*W*H(mm) | kg | Inch | T/h | |
| H55(W) | 1.8-6.0 | 64-212 | 20 | 290 | 37+15 | 50+20 | 86 | 70 | 2900*1400*1700 | 2000 | 1" | 12 |
| H60(W) | 30 | 435 | 37+22 | 50+30 | 86 | 70 | 2900*1400*1700 | 2000 | 1" | 12 | ||
| H65(W) | 40 | 580 | 37+30 | 50+40 | 92 | 70 | 2900*1400*1700 | 2100 | 1" | 15 | ||
| H75W | 3.0-10.0 | 106-353 | 20 | 290 | 55+22 | 75+30 | 110 | 73 | 3600*1750*2000 | 2400 | 1-1/4" | |
| H90W | 30 | 435 | 55+37 | 75+50 | 110 | 73 | 3500*1500*1730 | 2300 | 1-1/4" | 17 | ||
| H110W | 40 | 580 | 75+37 | 100+50 | 120 | 73 | 3500*1500*1730 | 2400 | 1-1/4" | 20 | ||
| H110W | 3.5-13.0 | 124-459 | 20 | 290 | 75+30 | 100+40 | 135 | 75 | 3500*1500*1730 | 2500 | 1-1/2" | 22 |
| H120W | 30 | 435 | 75+45 | 100+60 | 135 | 75 | 3500*1500*1730 | 2500 | 1-1/2" | 22 | ||
| H135W | 40 | 580 | 90+45 | 120+60 | 148 | 75 | 3500*1500*1730 | 2650 | 1-1/2" | 24 | ||
| H130W | 5.0-16.0 | 177-565 | 20 | 290 | 90+37 | 120+50 | 160 | 76 | 4000*1700*1800 | 3200 | 2" | 27 |
| H145W | 30 | 435 | 90+55 | 120+75 | 160 | 76 | 4000*1700*1800 | 3200 | 2" | 27 | ||
| H165W | 40 | 580 | 110+55 | 150+75 | 160 | 76 | 4000*1700*1800 | 3200 | 2" | 35 | ||
| H165W | 6.1-20.0 | 215-706 | 20 | 290 | 110+55 | 150+75 | 172 | 76 | 4000*1700*1800 | 3600 | 2" | 35 |
| H185W | 30 | 435 | 110+75 | 150+100 | 172 | 76 | 4000*1700*1800 | 3600 | 2" | 35 | ||
| H210W | 40 | 580 | 132+75 | 175+100 | 185 | 76 | 4000*1700*1800 | 3800 | 2" | 38 | ||
| H200W | 7.0-24.0 | 247-847 | 20 | 290 | 132+65 | 175+89 | 200 | 77 | 4200*2000*2100 | 4200 | 2-1/2" | 38 |
| H220W | 30 | 435 | 132+90 | 175+120 | 200 | 77 | 4200*2000*2100 | 4200 | 2-1/2" | 38 | ||
| H250W | 40 | 580 | 160+90 | 215+120 | 200 | 77 | 4200*2000*2100 | 4300 | 2-1/2" | 45 | ||
| H240W | 8.5-28.0 | 300-989 | 20 | 290 | 185+55 | 250+75 | 210 | 78 | 4200*2000*2100 | 4600 | 2-1/2" | 46 |
| H260W | 30 | 435 | 185+75 | 250+100 | 210 | 78 | 4200*2000*2100 | 4600 | 2-1/2" | 46 | ||
| H290W | 40 | 580 | 200+90 | 270+120 | 225 | 78 | 4200*2000*2100 | 4600 | 2-1/2" | 55 | ||
| H300W | 9.5-36.0 | 335-1271 | 20 | 290 | 185+110 | 250+150 | 220 | 80 | 4500*2250*2200 | 5000 | 3" | 50 |
| H315W | 30 | 435 | 185+132 | 250+175 | 260 | 80 | 4500*2250*2200 | 5000 | 3" | 60 | ||
| H355W | 40 | 580 | 200+160 | 270+215 | 290 | 80 | 4500*2250*2200 | 5000 | 3" | 68 | ||
| H330W | 10.0-40.0 | 353-1412 | 20 | 290 | 220+110 | 300+150 | 280 | 80 | 4500*2250*2200 | 5000 | 3" | 65 |
| H355W | 30 | 435 | 220+132 | 300+175 | 300 | 80 | 4500*2250*2200 | 5000 | 3" | 70 | ||
| H400W | 40 | 580 | 220+185 | 300+250 | 360 | 80 | 4500*2250*2200 | 5000 | 3" | 85 | ||
