| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | Dongfeng | Overall Dimension: | 7350×2495×3050mm |
|---|---|---|---|
| Curb Weight: | 5800kg | Tank Dimension: | 4450×1500×1500mm |
| Tank Volume: | 10000L | Engine: | 170hp |
| Highlight: | 10000L Vacuum Sewage Suction Truck,170hp Sewage Vacuum Pump Truck,10000L Sewage Vacuum Pump Truck |
||

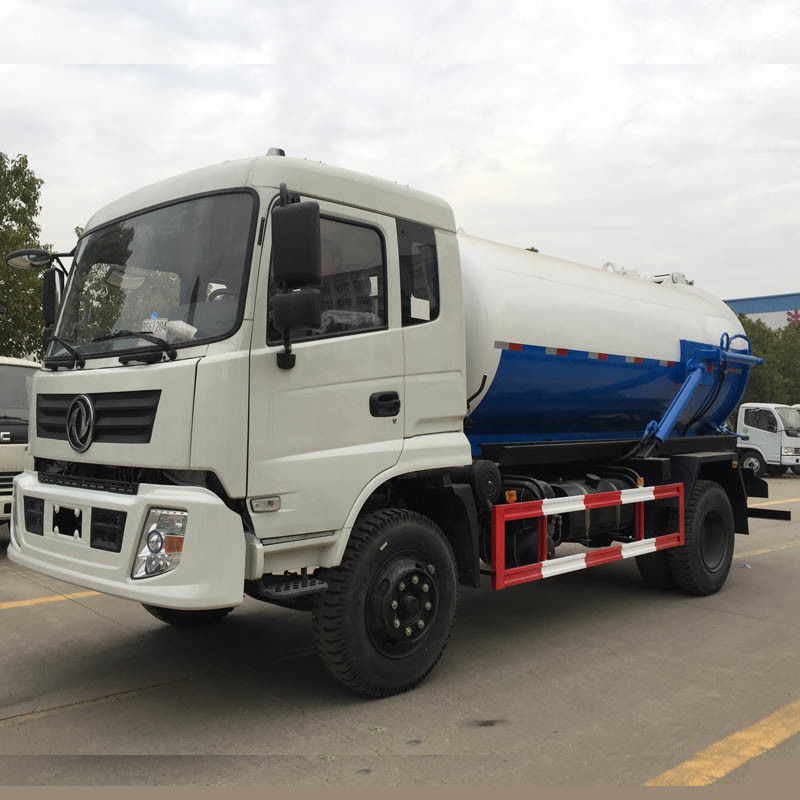

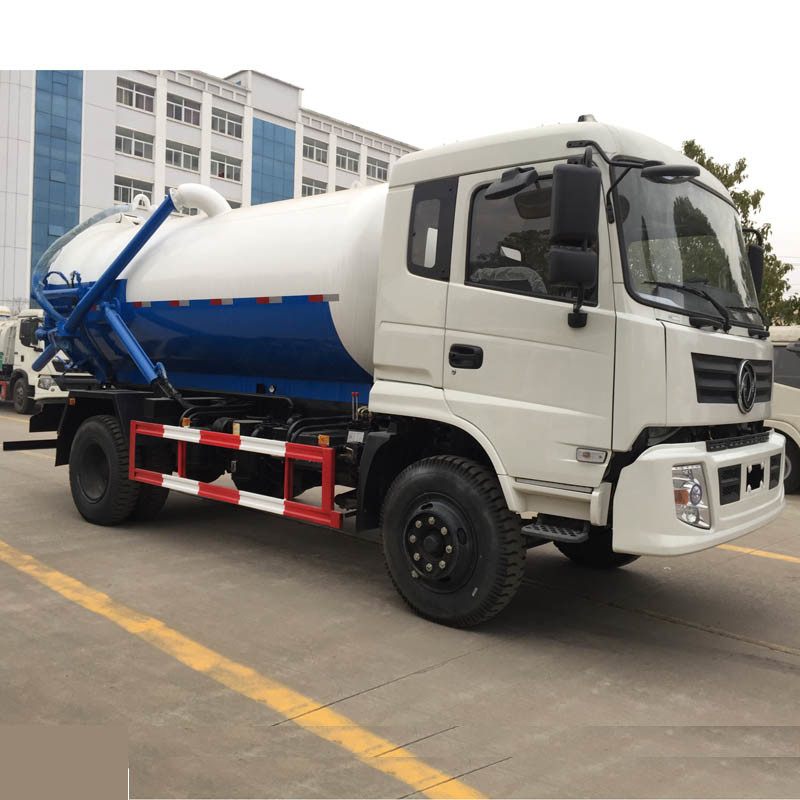

10000L Vacuum Sewage Suction Truck Cummins 170hp
Vehicle parameters:
| Overall dimensions | 7350×2495×3050mm | Curb weight | 5800kg |
| Tank dimensions | 4450×1500×1500mm | Tank volume | 10000L |
Chassis parameters:
| Chassis brand | DONGFENG | Wheel base | 3950mm |
| Overall dimensions | 6975X2462X2690mm | Front/rear suspension | 1205/1820mm |
| Front/rear wheel track | 1900/1800mm | Maximum speed | 90km/h |
| Approach/departure angle | 25/18° | ||
| Chassis Manufacturer | Dongfeng Motor Company | ||
| Cab | Configuration | A row and a half deluxe cab(with sleeping berth),allowable 3 passengers | |
| Color | Blue,other color is optional | ||
| Engine | Model | B170 33 | |
| Emission | Euro 3 | ||
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||
| Rated power | 170hp,rated power speed 2500rpm | ||
| Displacement | 5900ml | ||
| Max.torque | 560N.m | ||
| Bore x stroke | 102x120mm | ||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||
| Tire | Size | 9.00-20 nylon tire | |
| Number | 6+1 nos | ||
| Frame | (250×80×7)mm,parts are double layers. | ||
| Fuel tank | 160L,steel | ||
| Front axle | 3.6T | ||
| Rear axle | 9.0T | ||
| Drive form | 4X2 | ||
| Rated voltage | 24V,DC | ||
| Transmissions | Gearbox DF6S, 6 speed forward 1 reverse. | ||
| Steering device | Power assisted steering | ||
| Steering wheel | Left hand drive | ||
| Selective configuration | Air Conditioner,steel wire tire,new driver’s cab | ||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||
Vacuum sewage suction tank structure parameters:
| Tank dimensions | 4450×1500×1500mm | Tank volume | 10000L | |
| Tank material | Carbon steel | Tank thickness | 6mm | |
| Color and Logo | Optional | |||
China WEILONG vacuum pump:
| Flow | 68L/s | RPM | 800r/min |
| Power | 5kw | Pressure | 7000Pa(93%) |
| Weight | 50kg | ||

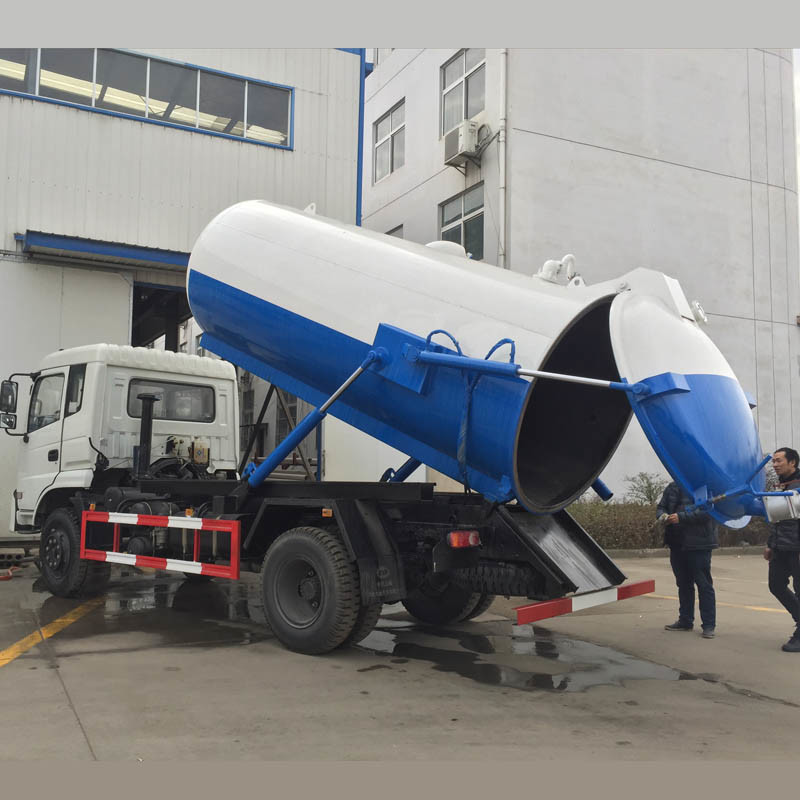

| Standard configuration | Chassis, sub frame, vacuum sewage tank, oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge, suction hose, gravity flow valve, connected device, observation tube, automatic anti overflow valve, hydraulic suite, rear door hydraulic opening. | ||
| Selective configuration | Italy BP vacuum pump, Italy Hydraulic Motor | ||
Italy BP vacuum pump:
| Flow | 107L/min | RPM | 1400r/min |
| Power | 30kw | Pressure | 174bar |
| Weight | 145kg |
Italy Hydraulic Motor:
| R.P.M | 1000r/min | Capacity | 73,82L/min |
| Output | 17KW | Torque | 136Nm |
