| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | Dongfeng | Overall Dimension: | 6910X2080X2500mm |
|---|---|---|---|
| Curb Weight: | 4550kg | Vacuum Tank Volume: | 4000L |
| Washing Tank Volume: | 1500L | Engine: | 95hp |
| Wheel Base: | 3300mm | ||
| Highlight: | 95hp Engine Vacuum Suction Truck,1500L Pressure Washing Truck,Vacuum Suction Truck 1500L |
||

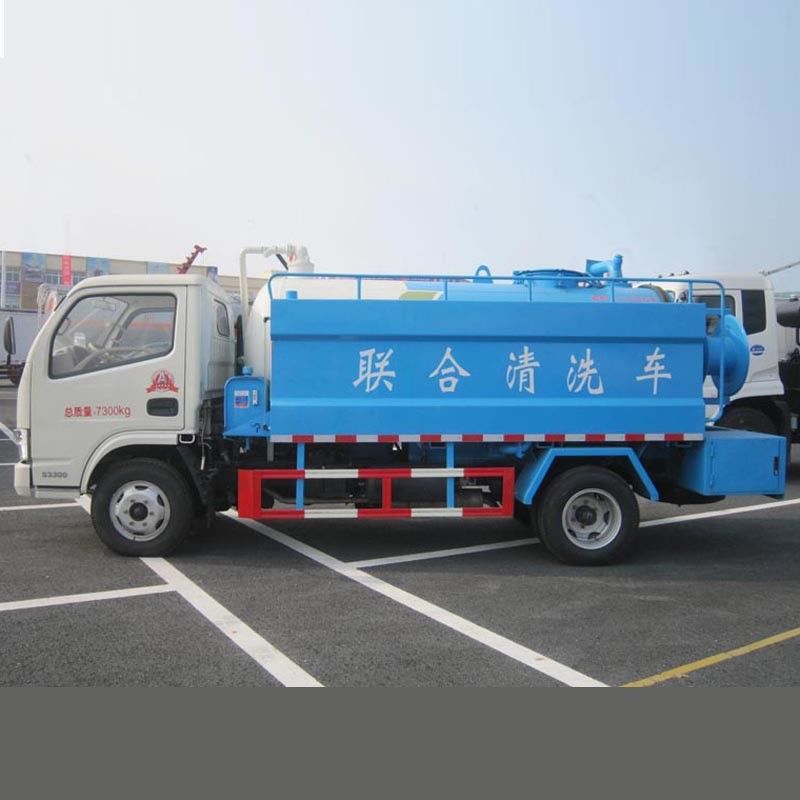

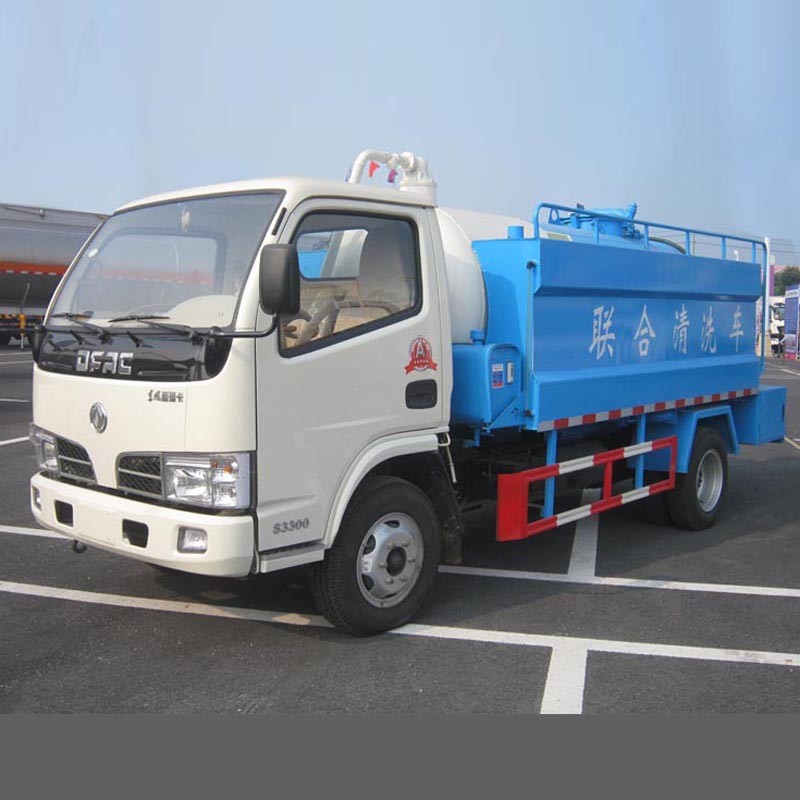

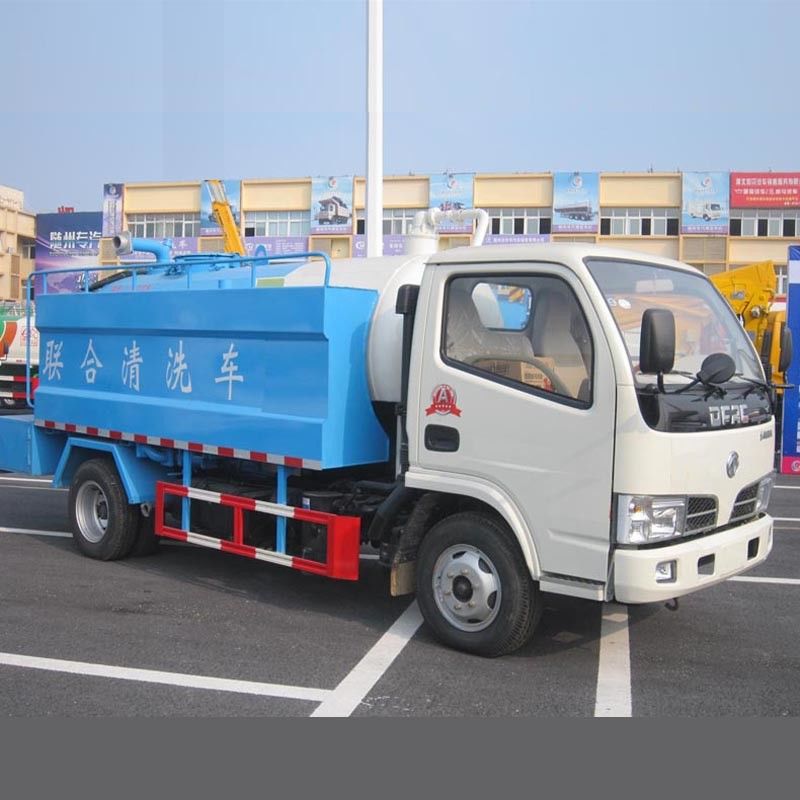

DONGFENG Vacuum Suction And Pressure Washing Truck Vacuum Tank
Vehicle parameters:
| Overall dimensions | 6910X2080X2500mm | Curb weight | 4550kg |
| Vacuum tank volume | 4000L | Washing tank volume | 1500L |
Chassis parameters:
| Chassis brand | DONGFENG | ||
| Overall dimensions | 5820x1940x2080mm | Wheel base | 3300mm |
| Front/rear wheel track | 1506/1466mm | Front/rear suspension | 1032/1488mm |
| Approach/departure angle | 19/15° | Maximum speed | 80km/h |
| Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||
| Cab | Configuration | Single row cab,allowable 3 passengers | |
| Color | White,other color is optional | ||
| Engine | Model | CY4102-C3F | |
| Emission | Euro 3 | ||
| Type | in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||
| Rated power | 95hp,rated power speed 3200rpm | ||
| Displacement | 3856ml | ||
| Bore x stroke | 102x118mm | ||
| Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||
| Tire | Size | 7.00-16 nylon tire | |
| Number | 6+1 nos | ||
| Fuel tank | 100L,steel | ||
| Front axle | 2.0T | ||
| Rear axle | 4.0T | ||
| Drive form | 4X2 | ||
| Rated voltage | 24V,DC | ||
| Transmissions | 5 speed forward 1 reverse. | ||
| Steering wheel | Left hand drive | ||
| Selective configuration | Air Conditioner,steel wire tire,power assisted steering | ||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||
Vacuum suction and pressure washing tank structure parameters:
| Vacuum tank volume | 4000L | Washing tank volume | 1500L |
| Tank material | Carbon steel | Vacuum tank thickness | 6mm |
| Washing tank thickness | 4mm | Color and Logo | Optional |
Domestic vacuum pump: RPM 900r/min
Italy plunger pump: RPM 1000r/min
Standard configuration: Chassis, sub frame, pressure washing tank, Italy plunger pump, reel with 60 meters pressure hose,10pcs stainless steel high pressure nozzles, tool box; vacuum sewage tank, oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge, suction hose, gravity flow valve, vacuum tank, connected device, observation tube, automatic anti overflow valve, hydraulic suite, rear door hydraulic opening.
