| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | Foton | Overall Dimension: | 4985X1720X2080mm |
|---|---|---|---|
| Curb Weight: | 2575kg | Garbage Container Dimensions: | 2800X1650X800mm |
| Garbage Container Volume: | 3m³ | Wheel Base: | 2600mm |
| Highlight: | Forland Sealed Dump Garbage Truck,Foton Dump Garbage Truck |
||

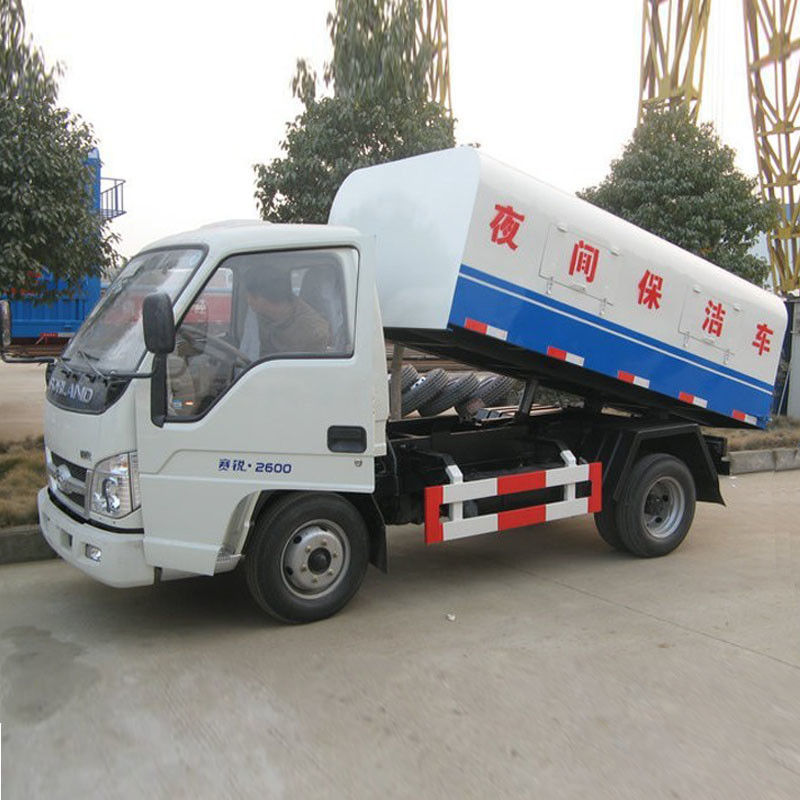

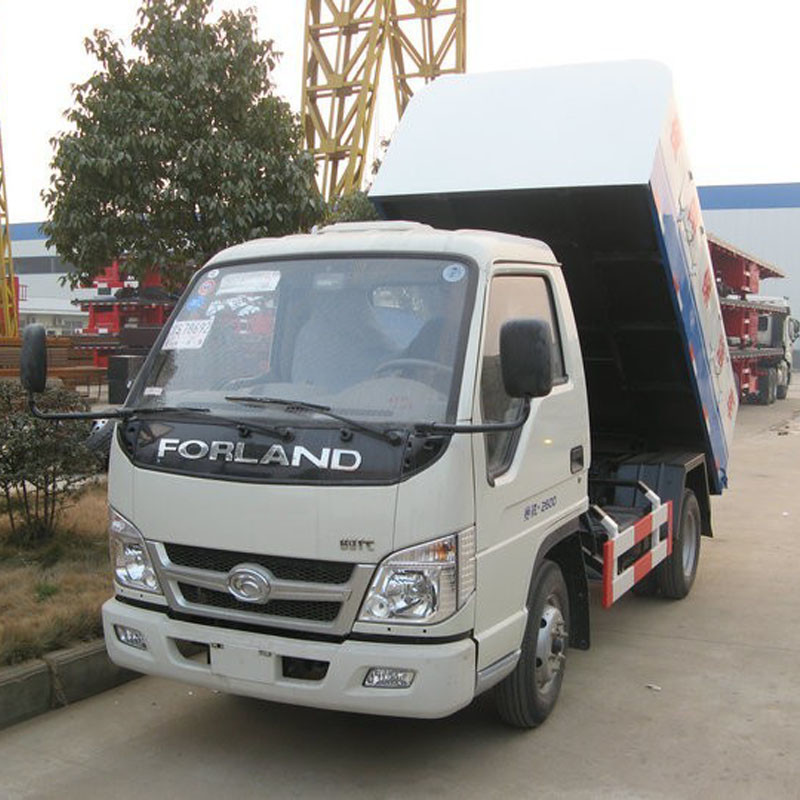

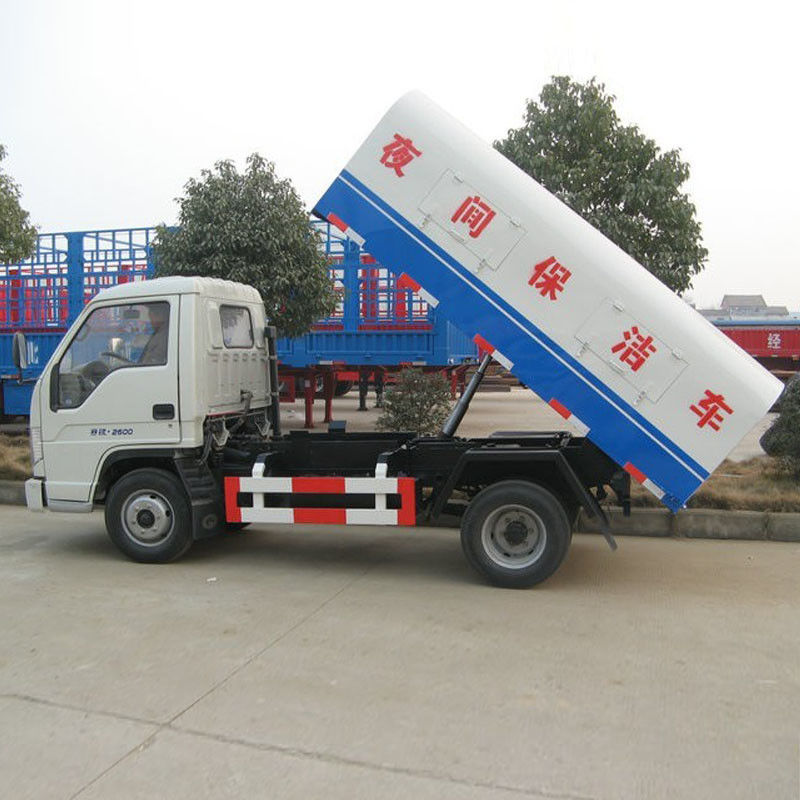

Foton Forland Sealed Dump Garbage Truck With Garbage Container
Vehicle parameters:
| Overall dimensions | 4985X1720X2080mm | Curb weight | 2575kg |
| Garbage container dimensions | 2800X1650X800mm | Garbage container volume | 3.0m³ |
Chassis parameters:
| Chassis brand | FOTON | |||
| Overall dimensions | 4985x1690x2080mm | Wheel base | 2600mm | |
| Front/rear wheel track | 1345/1240mm | Front/rear suspension | 1115/1270mm | |
| Approach/departure angle | 18/20° | Maximum speed | 95km/h | |
| Chassis Manufacturer | BEIQI FOTON MOTOR CO.,LTD | |||
| Cab | Configuration | 1560 single row cab,allowable 2 passengers,with warm air. | ||
| Color | White,other color is optional | |||
| Engine | Model | QC480ZLQ | ||
| Emission | Euro 1 | |||
| Type | 4 cylinders,in-line,turbo charger,diesel engine | |||
| Rated power | 62hp | |||
| Displacement | 1809ml | |||
| Bore x stroke | 80x90mm | |||
| Manufacturer | Anhui Quan Chai Power Co., Ltd | |||
| Tire | Size | 6.00-13 nylon tire | ||
| Number | 6+1 nos | |||
| Fuel tank | 70L iron oil tank | |||
| Rear axle | 3.0 tons | |||
| Drive form | 4X2 | |||
| Rated voltage | Camel brand,24V,DC | |||
| Transmissions | 5 speed forward 1 reverse | |||
| Steering device | Steering wheel | |||
| Steering wheel | Left hand drive | |||
| Selective configuration | Steel wire tire,air conditioner | |||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||
| Garbage container dimensions | 2800X1650X800mm | Garbage container volume | 3.0m³ |
| Garbage container material | Carbon steel | Side wall | 2.5mm |
| Bottom plate | 3mm | Color and Logo | Optional |
| Standard configuration | Chassis,master cylinder,one garbage container. | ||
