| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | DONGFENG | Product Name: | Multifunctional Dust Suppression Truck |
|---|---|---|---|
| Overall Dimension: | 8990X2480X3950mm | Curb Weight: | 9360kg |
| Garbage Container Volume: | 3m³ | Tank Volume: | 10000L |
| Engine: | 190hp | Wheel Base: | 4700mm |
| Highlight: | Multifunctional Dust Suppression Truck,10000L Dust Suppression Truck,Dongfeng Dust Suppression Truck |
||

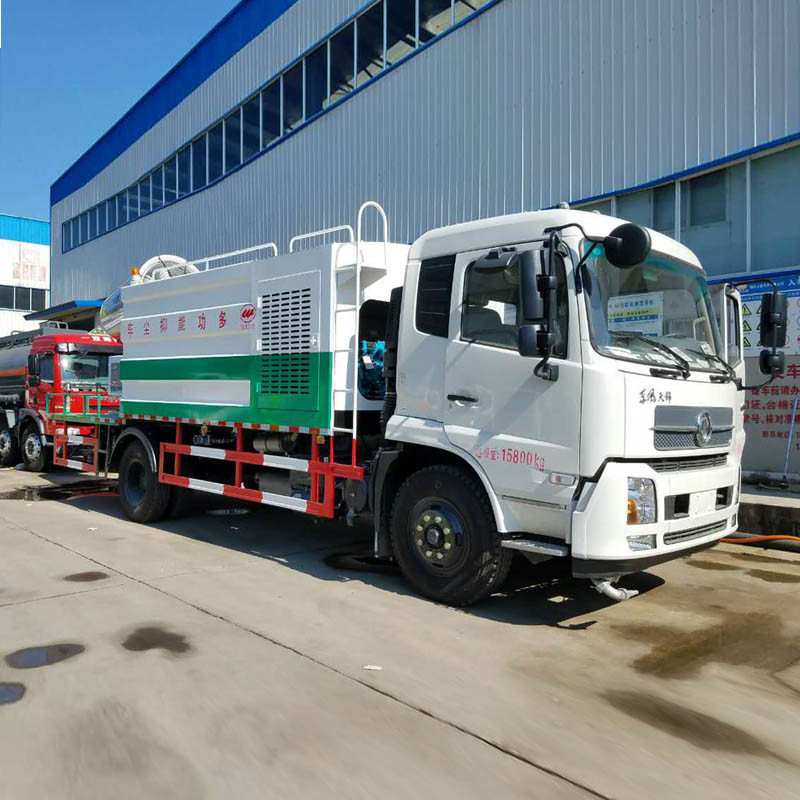

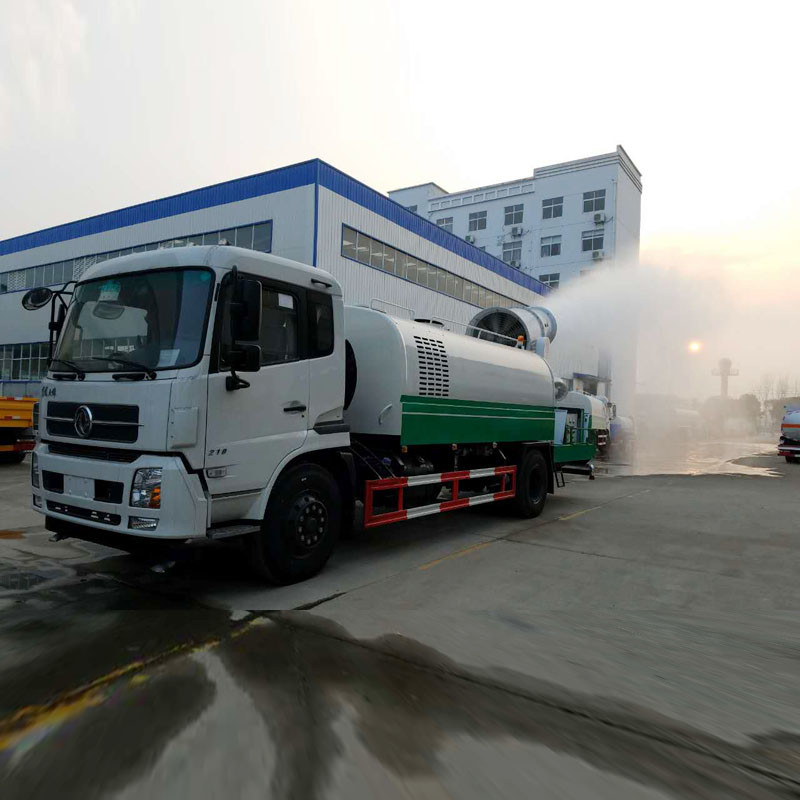

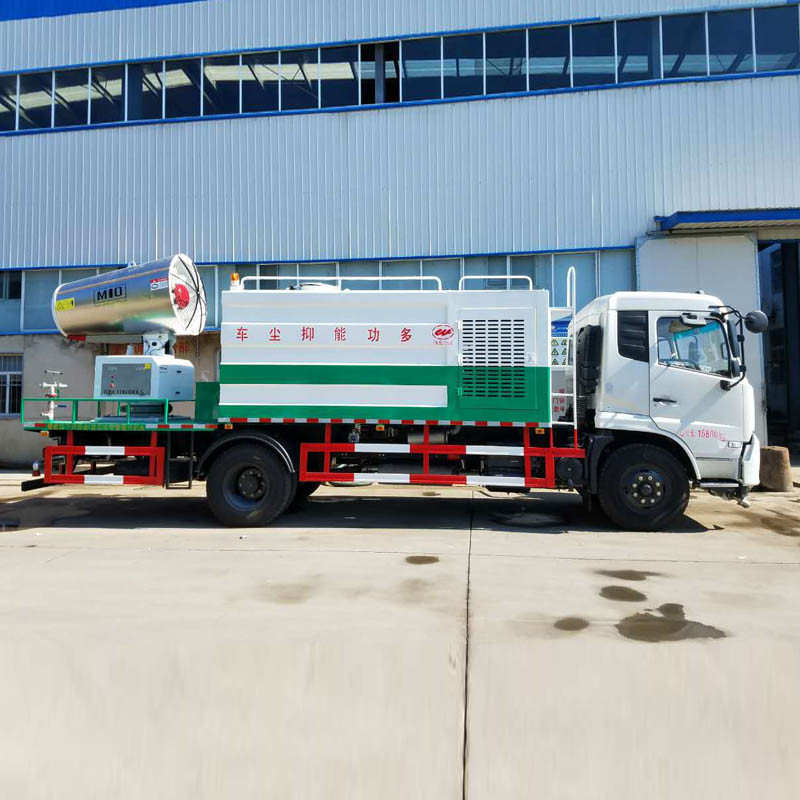

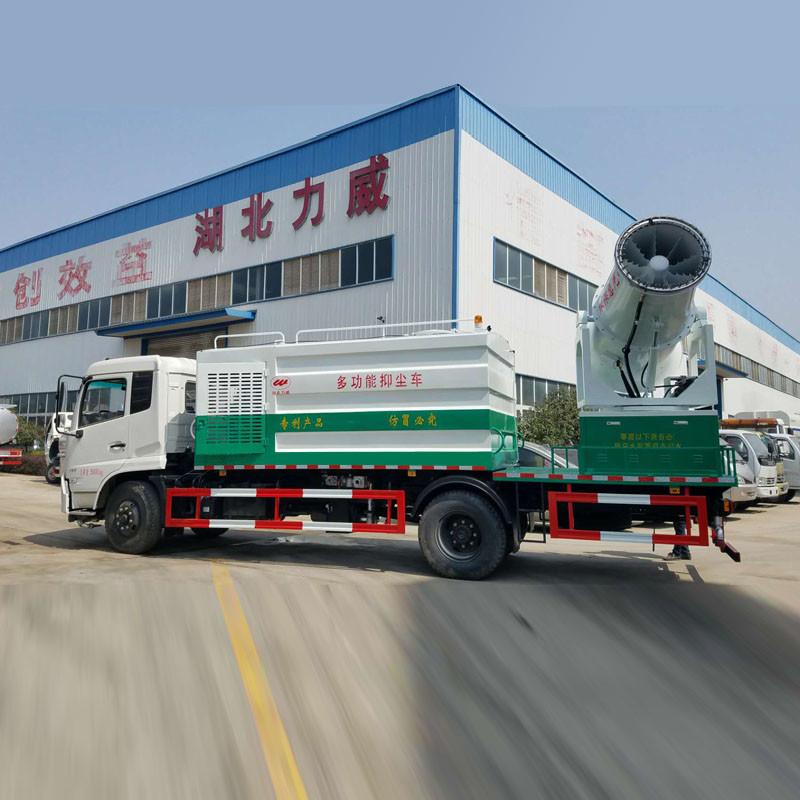

Dongfeng multifunctional dust suppression truck tank volume 10
Vehicle parameters:
| Overall dimensions | 8990X2480X3950mm | Curb weight | 9360kg |
| Tank volume | 10000L |
|
Chassis parameters:
| Chassis brand | DONGFENG | ||
| Overall dimensions | 7955x2462x2690mm | Wheel base | 4700mm |
| Front/rear wheel track | 1900/1800mm | Front/rear suspension | 1205/2050mm |
| Approach/departure angle | 20/13° | Maximum speed | 90km/h |
| Chassis Manufacturer | Dongfeng Motor Company | ||
| Cab | Configuration | A row and a half deluxe cab(with sleeping berth), allowable 3 passengers | |
| Color | white,other color is optional | ||
| Engine | Model | B190 33 | |
| Emission | Euro 3 | ||
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||
| Rated power | 190hp,rated power speed 2500rpm | ||
| Displacement | 5900ml | ||
| Max.torque | 640N.m | ||
| Bore x stroke | 102x120mm | ||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||
| Tire | Size | 9.00-20 nylon tire | |
| Number | 6+1 nos | ||
| Frame | (250×80×7)mm,parts are double layers. | ||
| Fuel tank | 160L,steel | ||
| Front axle | 3.6T | ||
| Rear axle | 9.0T | ||
| Drive form | 4X2 | ||
| Rated voltage | 24V,DC | ||
| Transmissions | Gearbox DF6S750, 6 speed forward 1 reverse. | ||
| Steering device | Power assisted steering | ||
| Steering wheel | Left hand drive | ||
| Selective configuration | Steel wire tire,air conditioner | ||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||
| Tank volume | 10000L | Tank material | 5mm manganese steel |
| Maximum range of spray machine | 120m | Maximum spray height | 70m |
| Spray machine | 30-120m optional | Color and Logo | Optional |
| Standard configuration | Chassis, sub frame, manganese steel water tank, PLC core control system, emergency stop button, fault indicator lamp,remote control, main air blower, spray machine. | ||
